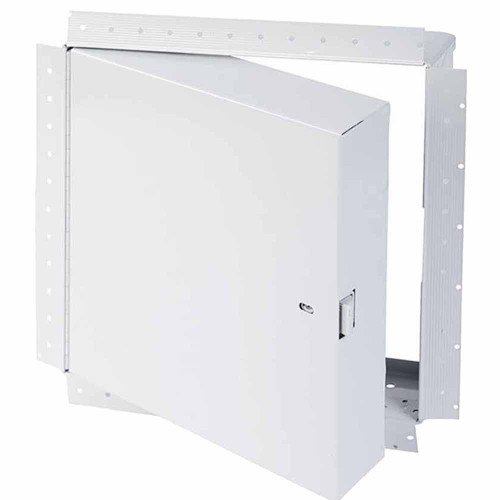

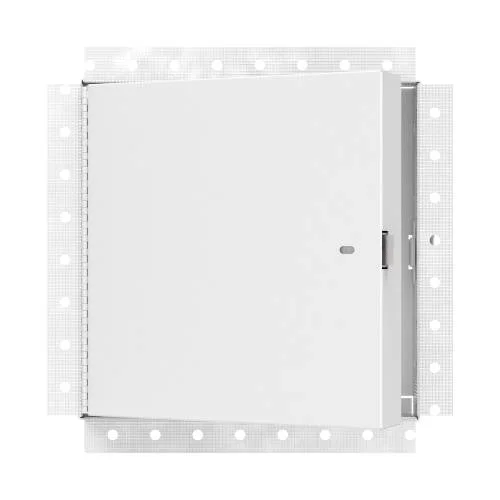

Fire-Rated Insulated Access Door with Drywall Flange
FEATURES
- Door: 20-Gauge Galvanneal Steel Door

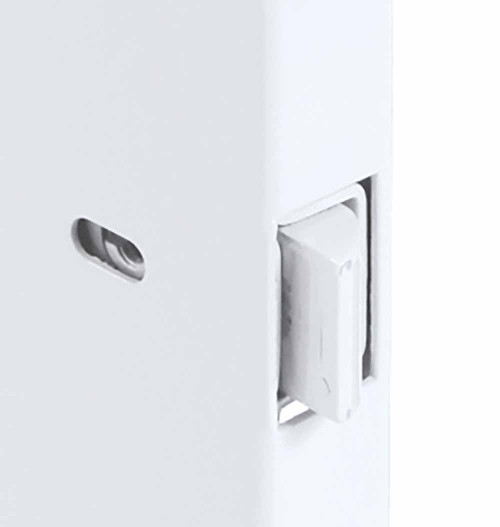

- Lock / latch: Ring/Tool Key Operated Slam Latch

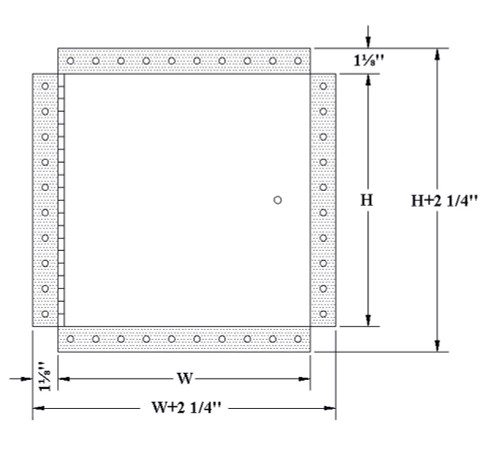

- 1" Flange
- Hinge: Continuous Piano Hinge
- Insulation: 2" Mineral Wood Insulation Inside
- Inside panel release: Included on all slam latch fire doors
- Finish: DuPont high quality white powder coat
- Fire-rated access doors, for VERTICAL use, are subject to the following:
Certification: UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (2010).
Rating Achieved: 3 hours, neutral/negative pressure
Temperature rise: 250°F (121°C) after 30 minutes and 450°F (232°C) after 60 minutes.
- Fire-rated access doors, for HORIZONTAL use, are subject to the following:
Certification: ASTM E119 (2012), CAN/ULC S101 (2007)
Rating Achieved 3 hours in non-combustible construction and 1 hour in combustible construction
Temperature rise: Within allowable per ASTM E119 and CAN/ULC S101
